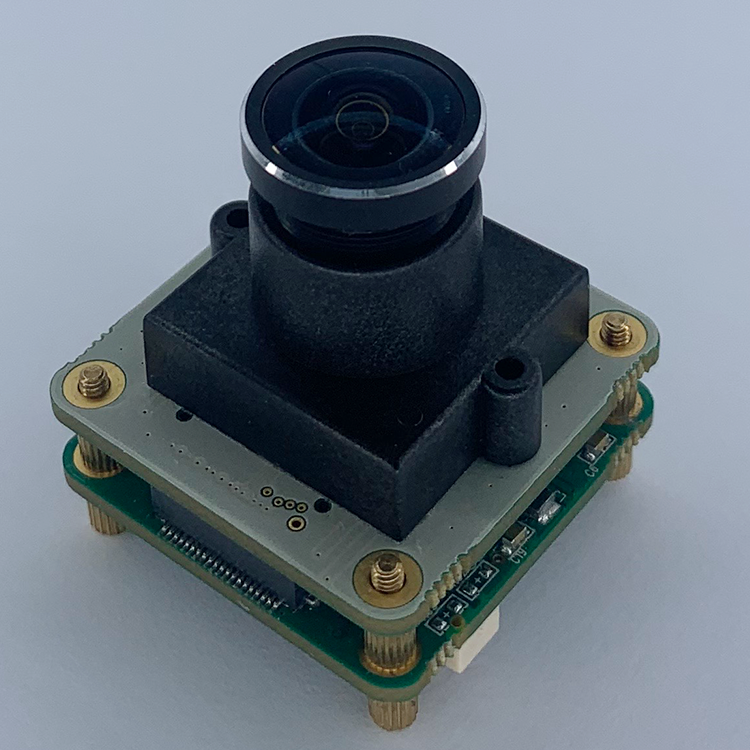

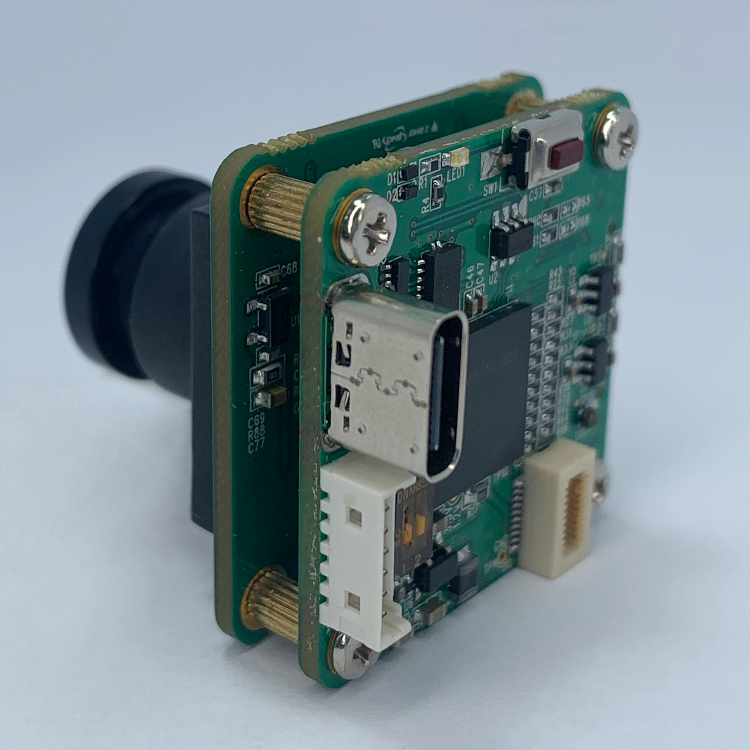

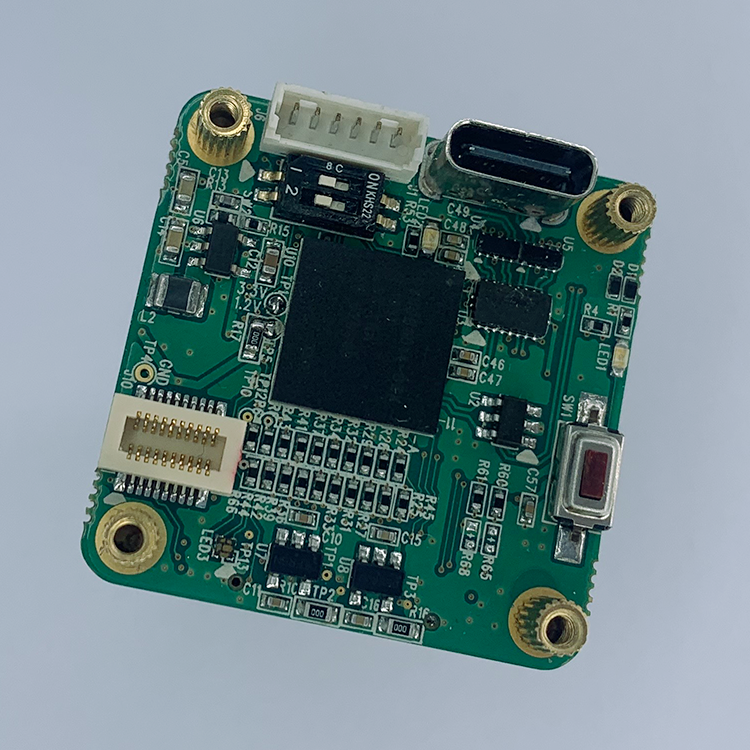

USB 3.0 PaxCam 개요

USB 3.0 Gen1 UVC 카메라 제품 군 5MP 카메라입니다. 디지털 현미경 및 세포촬영 등 다양한 분야에 적용 가능한 카메라 모듈입니다.


spec

SensorAptina MT9P031 5M pixels sensor
InterfaceUSB 3.0, USB Type-C
Ottical Format1/2.5 inch (4:3)
Active Imaging size5.70mm(H) x 4.28mm(V) 7.13mm Diagonal
Active Pixel2592(H) x 1944(V)
Pixel size2.2um x 2.2um
Frame Rate Full Resolution
(2592 x 1944)		USB 3.0 - max 10 fps
USB 2.0 - max 5 fps
ADC resolution12-bit, on-chip
Responsivity1.4V/lux-sec(550nm)
Pixel Dynamic range70.1dB
SNRMAX38.1dB
Operating Temperature-30℃ ~ 70℃
PowerUSB 3.0 +5VDC pwer source, 300mA under
PCB Size30mm x 30mm
Application
High resolution network cameras
Wide FOV cameras
720P–60 fps cameras
Dome cameras with electronic pan, tile, and zoom
Hybrid video cameras with high resolution stills
Detailed feature extraction for smart cameras
